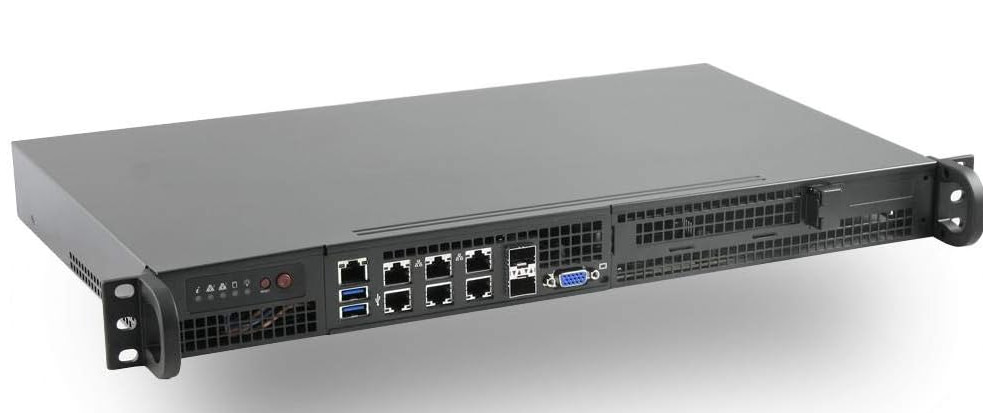

SuperMicro SYS-5019D-4C-FN8TP 1U Server - Skylake D, X11SDV-4C-TP8F, 505-203B For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

SuperMicro SYS-5019D-4C-FN8TP 1U Server - Skylake D, X11SDV-4C-TP8F, 505-203B:
$1499.99

Product SKUs
SYS-5019D-4C-FN8TP

• SuperServer 5019D-4C-FN8TP (Black)

MotherboardSuper X11SDV-4C-TP8F Processor
CPU

• Intel® Xeon® processor D-2123IT,
  CPU TDP support 60W

Cores / Cache

• 4 Cores, 8 Threads

System Memory
Memory Capacity

• Up to 512GB DDR4 ECC LRDIMM
• Up to 256GB DDR4 ECC DIMM
• 4 DIMM slots

Memory Type

• 2666/2400/2133MHz ECC DDR4 ECC LRDIMM and ECC DIMM

DIMM Sizes

• 128GB, 64GB, 32GB, 16GB

Memory Voltage

• 1.2 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors
  (using ECC memory)

On-Board Devices
SATA

• SATA3 (6Gbps) ports via SoC controller

Network Controllers

• Dual 10G SFP+ via SoC
• Quad 1GbE with Intel I350-AM4
• Dual 10GBase-T with Intel X557

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics

• Aspeed AST2500 BMC

Input / Output
SATA

• 4 SATA3 (6Gbps) ports (SATA/SAS HDD/SSD)

LAN

• 2 10G SFP+ ports
• 4 RJ45 1GbE LAN ports
• 2 RJ45 10GBase-T LAN ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 2 USB 3.0 ports (rear)

VGA

• 1 VGA port

Others

• TPM 2.0 header

Chassis
Form Factor

• 1U Rackmount

Model

• CSE-505-203B

Dimensions and Weight
Height

• 1.7" (43mm) / 6.1" (155mm) - pkg.

Width

• 17.2" (437mm) / 25.8" (655mm) - pkg.

Depth

• 9.8" (249mm) / 18.3" (465mm) - pkg.

Weight

• Net Weight: 8 lbs (3.63 kg)
• Gross Weight: 12 lbs (5.44 kg)

Available Colors

• Black

Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs

• Power LED
• Hard drive activity LED
• Network activity LEDs
• System Information LED
• Information LED (temp., status)

Expansion Slots
PCI-E

• 1 PCI-E 3.0 x8 slot
• 1 Mini-PCI-E with mSATA Support

M.2

• 1 M.2 slot M key for SSD, 2242/80
• 1 M.2 B Key for SSD/ WAN card

Drive Bays
Internal

• 1 Internal 3.5" or 4 Internal 2.5" drive bays

System Cooling
Fans

• 3x 40x28mm 4-PIN PWM fans

Power Supply
200W Low Noise AC-DC power supply with PFCAC Voltage

• 100 - 240V, 50-60Hz, 2.6 Amp Max

+5V

• 8.0 Amp (max.)

+5V standby

• 2.0 Amp (max.)

+12V

• 16 Amp (max.)

-12V

• 0.5 Amp (max.)

+3.3V

• 8.0 Amp (max.)

Certification
Gold Certified
System BIOS
BIOS Type

• 128Mb SPI Flash with AMI BIOS

BIOS Features

• PCI 3.0
• ACPI 5.0
• USB Keyboard support
• Hardware BIOS Virus protection
• SMBIOS 2.8
• UEFI 2.4
• RTC (Real Time Clock) Wakeup

• Operating Temperature:
  10°C to 35°C (50°F to 95°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

Operating Environment / Compliance
RoHS

• RoHS Compliant

Environmental Spec.

---

---

---
