Sun 370-2728 X1155A High Speed Interface 2.0 (HSI/P) PT-PCI334-10592, Ships FAST:
$289.98

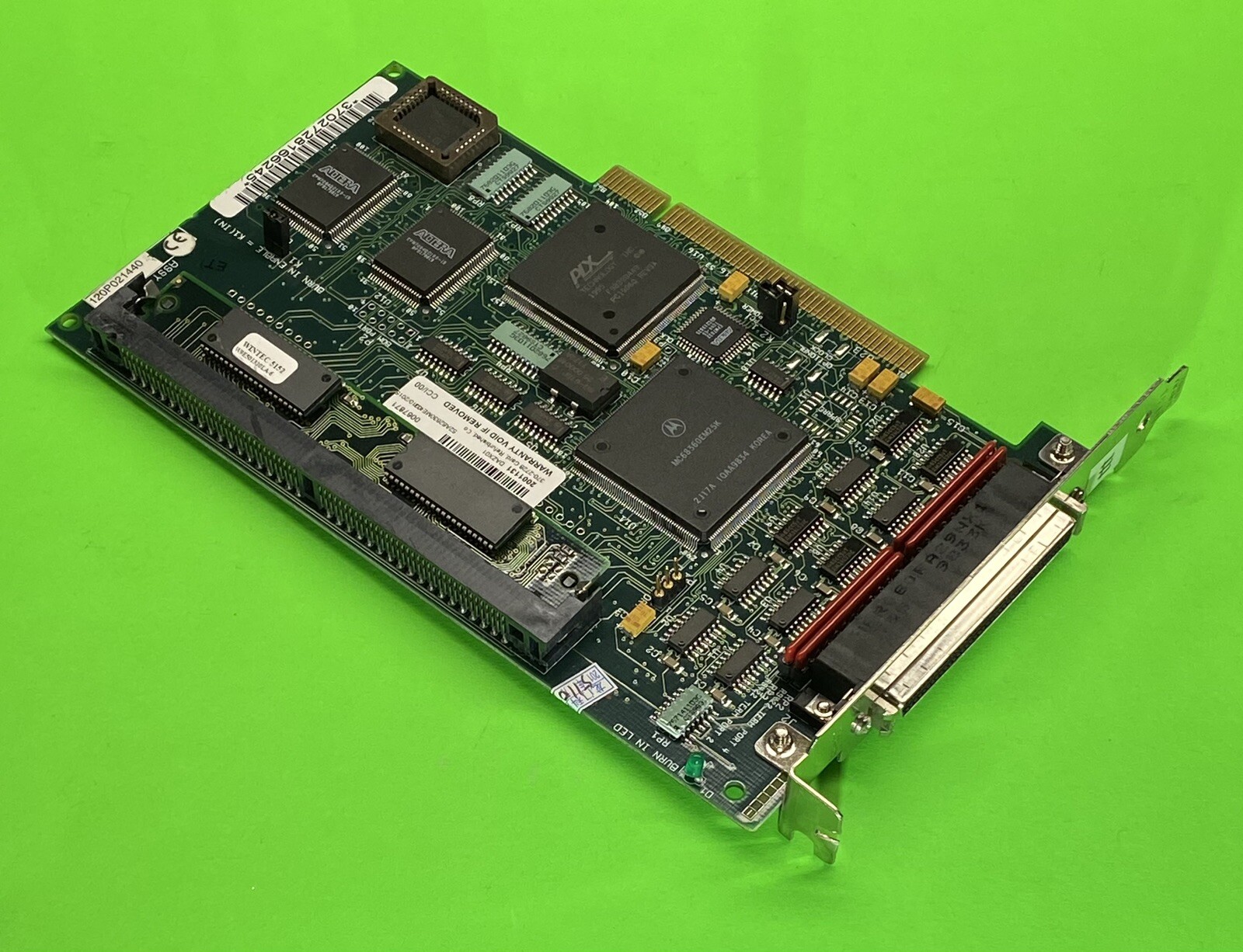

Sun Microsystems High Speed Serial Interface (HSI/P) Card
Option number: X1155APart number: 370-2728Description: High Speed Serial Interface (HSI/P) CardManufacturer: Performance TechnologiesModel: PT-PCI334-10592Voltage: 5VBit: 32BitMHz: 33MHzExternal Connector: HD80-PinCondition: Tested Pull, Clean, Guaranteed
Compatible Sun Microsystems Servers and Workstations:

Ultra 5
Ultra 10
Ultra 30
Ultra 60
Ultra 80
Blade 100
Blade 150
Blade 1000
Blade 1500
Blade 2000
Blade 2500
Enterprise 220R
Enterprise 250
Enterprise 420R
Enterprise 450
Enterprise 3500
Enterprise 4500
Enterprise 5500
Enterprise 6500
Fire V120
Fire V240
Fire V250
Fire 280R
Fire V440
Fire 12K
Fire 15K
Fire E20K
Fire E25K
Fire 4800
Fire 4810
Fire 6800
E2900
E4900
E6900
Fire V1280
V480
V490
V880
V890
Netra 120
Netra 1280
Netra 20
Netra 240
Netra 440
Netra T1 AC200
Netra T1 DC200
Netra t 1400
Netra t 1405

Manufacturer Notes:

The HSI/P supports 1MB through 32MB, 72-Pin, 5 Volt SIMMs.
A 4MB SIMM is installed as a standard configuration.
The 4MB SIMM does not have a Sun part number.
The BDM port is defined in the QUICC Users Manual, Section 9.9.
The HSI/P Cable provides four DB37 connectors.
The HSI/P is not supported on the PCI+ I/O assembly (540-6247)'

Operating System Notes:

The minimum operating system is Solaris 2.5.1 Hardware: 4/97.
The HSI/P 1.0 software is on CD-ROM 704-5748-10.
The HSI/P 2.0 software is on CD-ROM 704-6439-10.
Option 1155 includes HSI/P 2.0 for Solaris 7.
The Solaris 8 Supplement includes HSI 3.0 software.
Solaris messaging identifies the card as "pci1214,334".

Compatible Cables (not included):

530-2492 - 2M 4-Port DB37 RS449 Breakout Cable - replaced 1749 09/97
530-2726 - 2M 4-Port DB37 RS449 Breakout Cable - replaced 530-2792 10/98
370-4068 - 2M 4-Port DB37 RS449 Breakout Cable - replaced 530-2726 03/00

Ships SAFE and Fast!!!
