STLINK-V3SET， Hardware Debuggers STLINK-V3 Modular in-Circuit debugger and Pr...:
$114.77

Description:

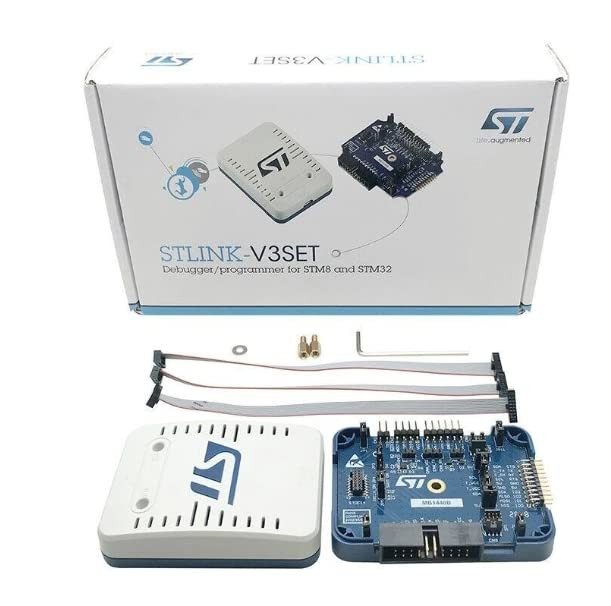

The STLINK-V3SET is a modular stand-alone debugging and programming probe for the STM8 and STM32 microcontrollers. It is composed of a main module and a complementary adapter board. The SWIM and JTAG/SWD interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board. The STLINK-V3SET also provides a Virtual port interface allowing the host PC to communicate with the target microcontroller through UART, and bridge interfaces (SPI, I2C, CAN, GPIOs) allowing for instance the programming of the target through the bootloader.

The STLINK-V3SET can provide a second Virtual port interface allowing the host PC to communicate with the target microcontroller through another UART (called bridge UART). Bridge UART signals, including optional RTS and CTS, are available on adapter board only (MB1440). The second Virtual port activation is done through a reversible firmware update, which also disables the mass storage interface (used for drag-and-drop flash programming). The modular architecture of STLINK-V3SET enables to extend its main features through additional modules such as the adapter board.


Tool Is For Evaluation Of:STM8, STM32
Core:ARM Cortex M
Type Debugger, Programmer (In-Circuit/In-System)
Stand-alone probe with modular extensions /Self-powered/Direct firmware update support (DFU) through a USB connector (Micro-B)/USB 2.0 high-speed interface/
JTAG / serial wire debugging (SWD) specific features: – 3 to 3.6 V application voltage support and 5 V tolerant inputs – Flat cables STDC14 to MIPI10 / STDC14 / MIPI20 (connectors with 1.27 mm pitch) – JTAG communication support – SWD and serial wire viewer (SWV) communication support
SWIM specific features (only available with adapter board MB1440): – 1.65 to 5.5 V application voltage support – SWIM header (2.54 mm pitch) – SWIM low-speed and high-speed modes support
Virtual port (VCP) specific features: – 3 to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs – VCP frequency up to 15 MHz – Available on STDC14 debug connector (not available on MIPI10)
