NEW EMC Mellanox NV303611A Innova-2 Flex Open 2x 100GbE QSFP28 SmartNIC For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

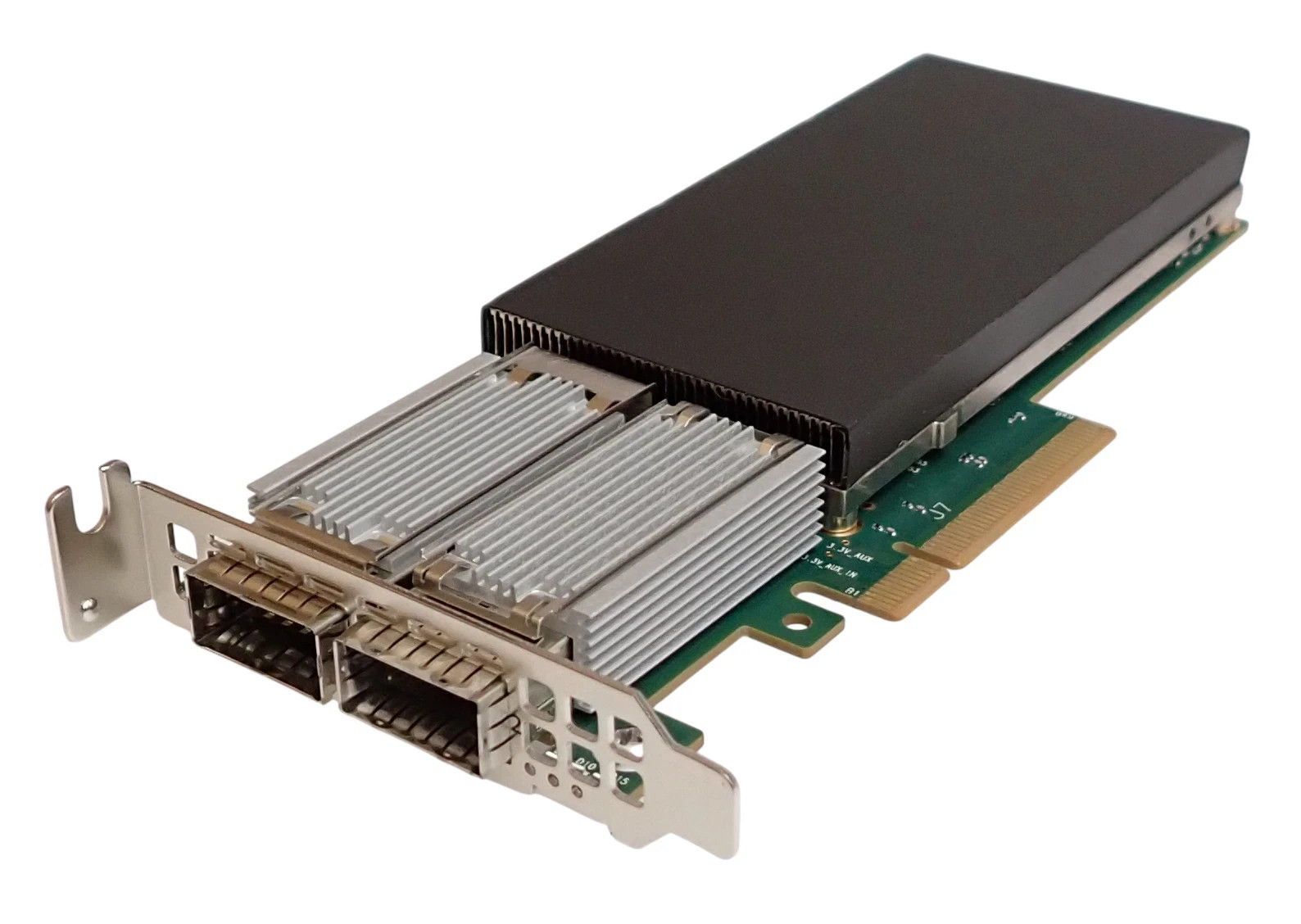

NEW EMC Mellanox NV303611A Innova-2 Flex Open 2x 100GbE QSFP28 SmartNIC:
$350.00

NEW EMC Mellanox NV303611A Innova-2 Flex Open 2x 100GbE QSFP28 SmartNICModel:NV303611APN: 105-001-377-01

New Pull From New Server
Tested
2 Year Warranty
Low Profile Card With Half Height Bracket

Included:

• 1 xNEW EMC Mellanox NV303611A Innova-2 Flex Open 2x 100GbE QSFP28 or Ethernet Controller (flavor-dependent):Dual-portApplication Accelerator FPGA:Xilinx Kintex UltraScale XCKU15POn-Board Memory:8GB DDR4-2400 (flavor-dependent)InfiniBand
  • EDR / FDR / QDR / DDR / SDR
  • IBTA Specification 1.3 compliant
  • RDMA, Send/Receive semantics
  • Hardware-based congestion control
  • Atomic operations
  • 16 million I/O channels
  • 256 to 4Kbyte MTU, 2Gbyte messages
  • 8 virtual lanes + VL15
  Ethernet
  • 100GbE / 25GbE / 10GbE
  • IEEE 802.3bj, 802.3bm 25 Gigabit Ethernet
  • IEEE 802.3by, Ethernet Consortium 25 Gigabit
  • IEEE Std 802.3ae 10 Gigabit Ethernet
  • IEEE Std 802.3ad Link Aggregation
  • IEEE Std 802.1Q, .1P VLAN tags and priority
  • IEEE Std 802.1Qau Congestion Notification
  • IEEE P802.1Qaz D0.2 ETS
  • IEEE P802.1Qbb D1.0 Priority-based Flow Control
  • IEEE 1588v2
  • Jumbo frame support (9600B)
  Remote Boot
  • Remote boot over Features & Offloads
    • RDMA over Converged Ethernet (RoCE)**
    • RAID offload – erasure coding (Reed-Solomon) offload
    • Hardware-based reliable transport
    • Mellanox PeerDirect RDMA (aka GPUDirect communication acceleration)
    • Enhanced Atomic operations
    • Advanced memory mapping support, allowing user mode registration and remapping of memory (UMR)
    • LSO, LRO, checksum offload
    • RSS VLAN and MPLS tag insertion/stripping, Receive flow steering
    • Intelligent interrupt coalescing
    Hardware-Based I/O Virtualization
    • Single Root IOV
    • SR-IOV: Up to 512 Virtual Function
    • SR-IOV: Up to 2 Physical Functions
    • Virtualizing Physical Functions on a physical port
    • SR-IOV on every Physical Function
    • Address translation and protection
    • Guaranteed QoS for VMs
    Media & Entertainment
    • SMPTE 21110-20
    • SMPTE 2110-21N/NL
    Management and Control Interfaces
    • NC-SI, MCTP over SMBus and NC-SI over MCTP over PCIe - Baseboard Management Controller interface
    PCI Express Interface
    • PCIe Gen 4.0, 3.0, 1.1 and 2.0 compatible
    • 2.5, 5.0, or 8.0GT/s link rate x8
    • Auto-negotiates to x8, x4, x2, or x1 PCIe Atomic
    • TLP (Transaction Layer Packet) Processing Hints (TPH)
    • Access Control Service (ACS) for peer-topeer secure communication
    • Advance Error Reporting (AER)
    • Process Address Space ID (PASID) Address Translation Services (ATS)
    • Support for MSI/MSI-X with Ethernet switches (up to 25GbE)
    • Passive copper cable with ESD protection
    • Powered connectors for optical and active cable support
    Operating Systems / align="left">CSNV303611A/NEW -26 dup .co.uk

    ---

    ---



    ---
