FanPico-0804D - Programmable PWM (PC) Fan Controller [DIY Kit] For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

FanPico-0804D - Programmable PWM (PC) Fan Controller [DIY Kit]:
$20.95

This is a DIY kit for building FanPico Fan Controller.Kit includes a PCB with SMT components pre-assembled and thru-hole components that require assembly (soldering).
FanPico is an Open Source Hardware (OSHW) project (more details can be found in github). Purchasing this kit directly supports the development of FanPico.
NOTE! This is NOT a finished product, assembly is required.
There is two board variations currently:- 0401D - 4 x Fan Outputs and 1 x (Motherboard) Fan Input - 0804D - 8 x Fan Outputs and 4 x (Motherboard) Fan InputPurchase options:
PCB Only:- Includes only PCB with SMD components pre-assembled (v1.3 or later revision)

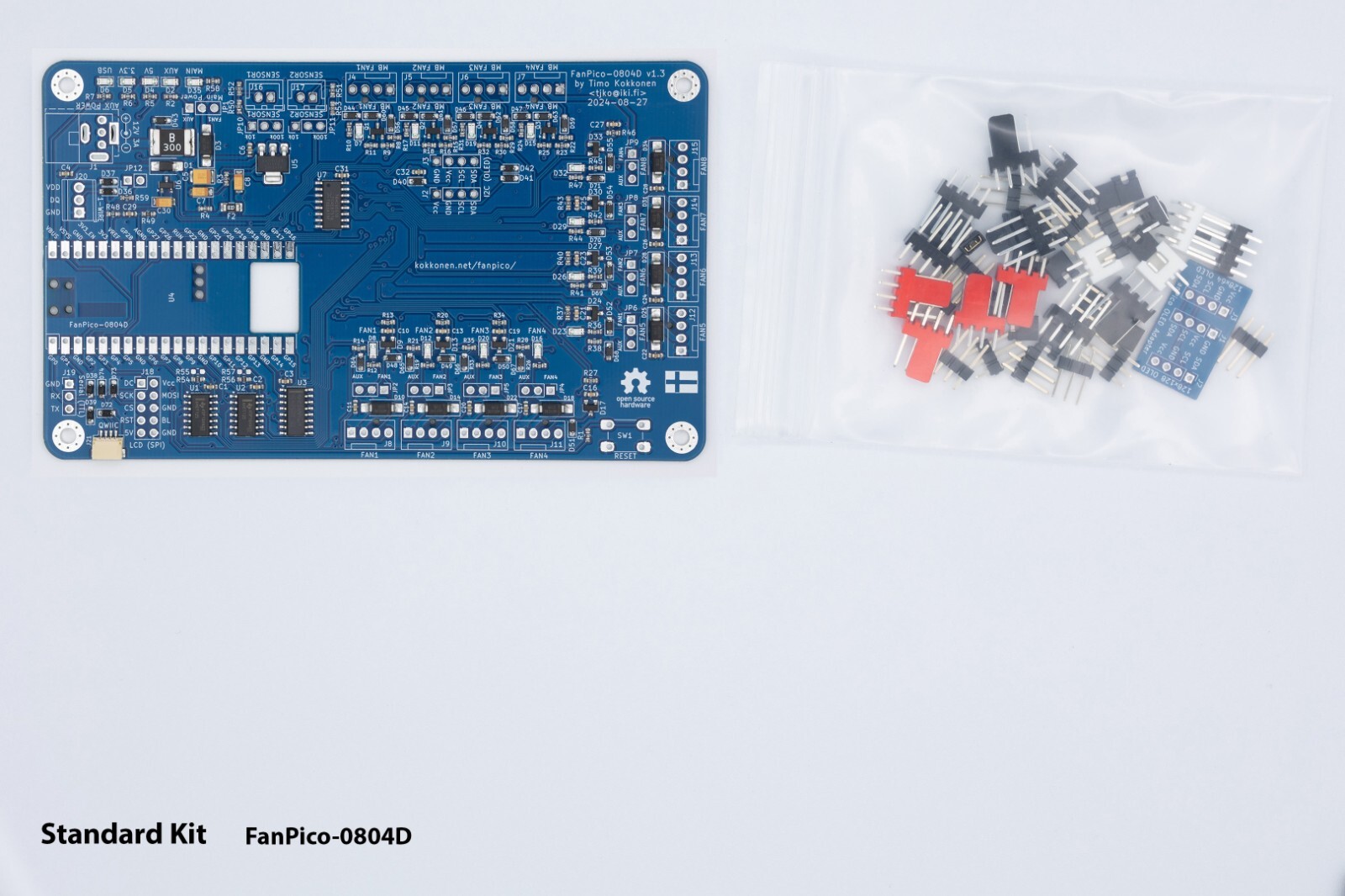

Standard Kit:- FanPico PCB with SMD components pre-assembled (v1.3 or later revision)- Fan Connectors (either straight or right-angle versions)- Temperature Sensor Connectors (either straight or right-angle versions)- Power Connector (PC "Floppy" power connector/DC Barrel jack)- Pin headers for the jumpers and TTL Serial port
- Jumpers for the jumper pin headers- Reset switch
Deluxe Kit:- Includes everything in the Standard kit- Female headers for mounting Pico (or Pico W) with headers soldered on (instead of soldering Pico directly onto the PCB).- Female header for OLED connector- Straight and Right Angle pin headers for OLED connector (for using cable to relocate OLED display)- Raspberry Pi Pico W module- OLED module (128x64 pixels)Assembled Kit:- Assembled PCB (with either straight or right-angle fan connectors)- 1.5" OLED module (128x128 pixels)- 2 x Temperature SensorsNOTE! Assembled kit comes by default with 4-pin PC Floppy power connector. If you prefer DC Barrel power connector, add note to your order requesting DC power connector.

---

---

---

Related Items:

FanPico-0804D - Programmable PWM (PC) Fan Controller [DIY Kit]

$20.95

---
