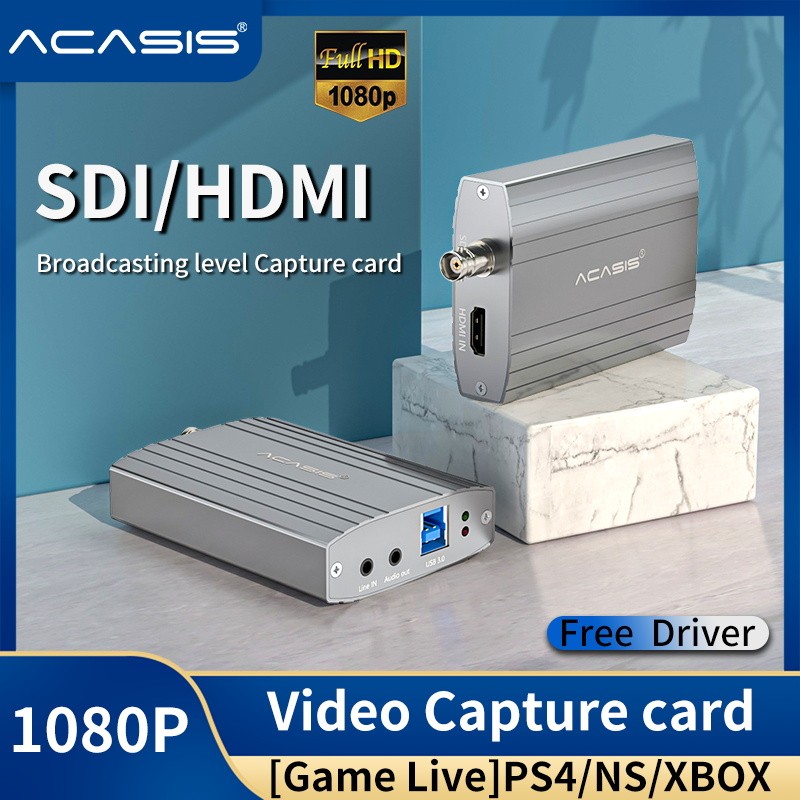

ACASIS USB-B SDI HDMI Video Capture Card 1080p60 Audio Line In for PC For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

ACASIS USB-B SDI HDMI Video Capture Card 1080p60 Audio Line In for PC:
$83.30

• This 2-in-1 video capture card supports 4K input from both SDI and HDMI sources and comes with advanced video processing capabilities, including:

  - Deinterlacing - Converts interlaced video into progressive scan output
  - Color space conversion - Automatically converts between different color spaces
  - Hardware chroma resampling - Improves video quality by resampled chroma components
  - Audio mixing - Mix and output multiple audio sources
  - Deghosting - Eliminates ghosting artifacts in interlaced video
  - Color enhancement - Enhances brightness, contrast and colors

  Connection interface: USB3.0 300~350Mb/s transmission bandwidth
  Video ADC bit depth: 10Bit
  Main control scheme: low power consumption Lattice EP3-35 FPGA
  Onboard DDR: 1GB DDR3
  Video input interface: (switch input)
  HDMI interface: HDMI input, DVI can be transferred; in line with HDMI1.4 standard
  SDI: Support SMPTE 260M, SMPTE 274M,
  SMPTE 295M and SMPTE 296M
  Analog audio input, support dual-channel stereo input
  Video resources: HD HDMI 1920*1080@60FPS is backward compatible
  SDI: 1920*1080@60FPS backward compatible
  HDCP support: HDCP support
  Audio mixing: support analog audio mixing to digital HDMI or SDI audio
  TV input format standard support:
  1920*1080P (60/59.54/50/30/29.97/25/24/23.976)
  1920*1080i (60/59.54/50/30/29.97/25)
  1280*720P style="box-sizing: border-box;" />720*576P (120/60/50)
  720*576i (120/60/50/25)
  720*480P (240/239.76/120/60)
  PC graphics card format input supports standards
  640*480P (60/72/75/8HZ)/800*600P (60/72/75/85HZ)
  1024*768P (70/75/85HZ)/1280*768P (60/75/85HZ)
  1280*960P (60/85HZ)/1280*1024P (60/75/85HZ)
  1152*864P75HZ
  Output color space:
  YUV4:2:2(YUY2), RGB8:8:8(RGB24), NV12(YUV420)
  Audio support:
  Support UAC (USB audio class), audio resampling is fixed to 48K output
  UVC drive-free support:
  Comply with UVC (USB video class), UAC (USB audio class) specifications
  USB2.0 support: support USB2.0
  Standard development support: DirectShow (Windows), V412 (Linux)
  SDK development streaming media protocol support
  Support RTSP video transmission, can realize VLC remote monitoring
  Support RTMP streaming to FMS server
  Compatible software support: Windows Media Encoder (Windows)
  Adobe Flash Media Live Encoder (Windows, OS X)
  Real Producer Plus (Windows)
  VLC (Windows, OS X, Linux)
  QuickTime Broadcaster (OS X)
  QuickTime Player (OS X)
  Wirecast (Windows, OS X)
  Supported operating systems: X86 and X64 versions of the following operating systems are supported
  Support compatible with Windows, Linux, OS X system

  On May 20, 2026 at 21:04:27 PDT, seller added the following information:

  ---

  ---



  ---

  Related Items:



  ACASIS USB-B Video Capture Card SDI HDMI 1080p60 Audio Line In Medical Use

  $85.68




  ---



  ACASIS USB-B SDI HDMI Video Capture Card 1080p60 Audio Line In for PC

  $83.30




  ---



  ACASIS USB-B Video Capture Card SDI HDMI 1080p60 Full HD Audio Line In

  $99.00




  ---
