(1) LG LP125WH2 (SL) (T3) REPLACEMENT LAPTOP LCD SCREEN 12.5"IN 40 PIN for Sale

(1) LG LP125WH2 (SL) (T3) REPLACEMENT LAPTOP LCD SCREEN 12.5"IN 40 PIN For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

(1) LG LP125WH2 (SL) (T3) REPLACEMENT LAPTOP LCD SCREEN 12.5"IN 40 PIN:
$22.00

FMIwas established to offer consumers the opportunity to benefit from incredible deals on: new, over-stocked, open-box, and refurbished products from all major retailers and manufacturers. Every single item we sell goes through thorough inspection processes to make certain it works perfectly. FMI’s team ensure they are functional, according to the original manufacture's specifications.

Each item comes exactly as pictured unless there are more than one quantity. Then you will receive an item ofsimilarcondition.If any item is not shown in the picture, it will not be included unless stated in the description.

For any inquiry or issue,PLEASEcontact us before leaving response or opening a case. We will try our best to resolve any issue. We at FMI stride to satisfy our customer needs. Most importantly, we value your business and ensure you received the best experience.Thank You!

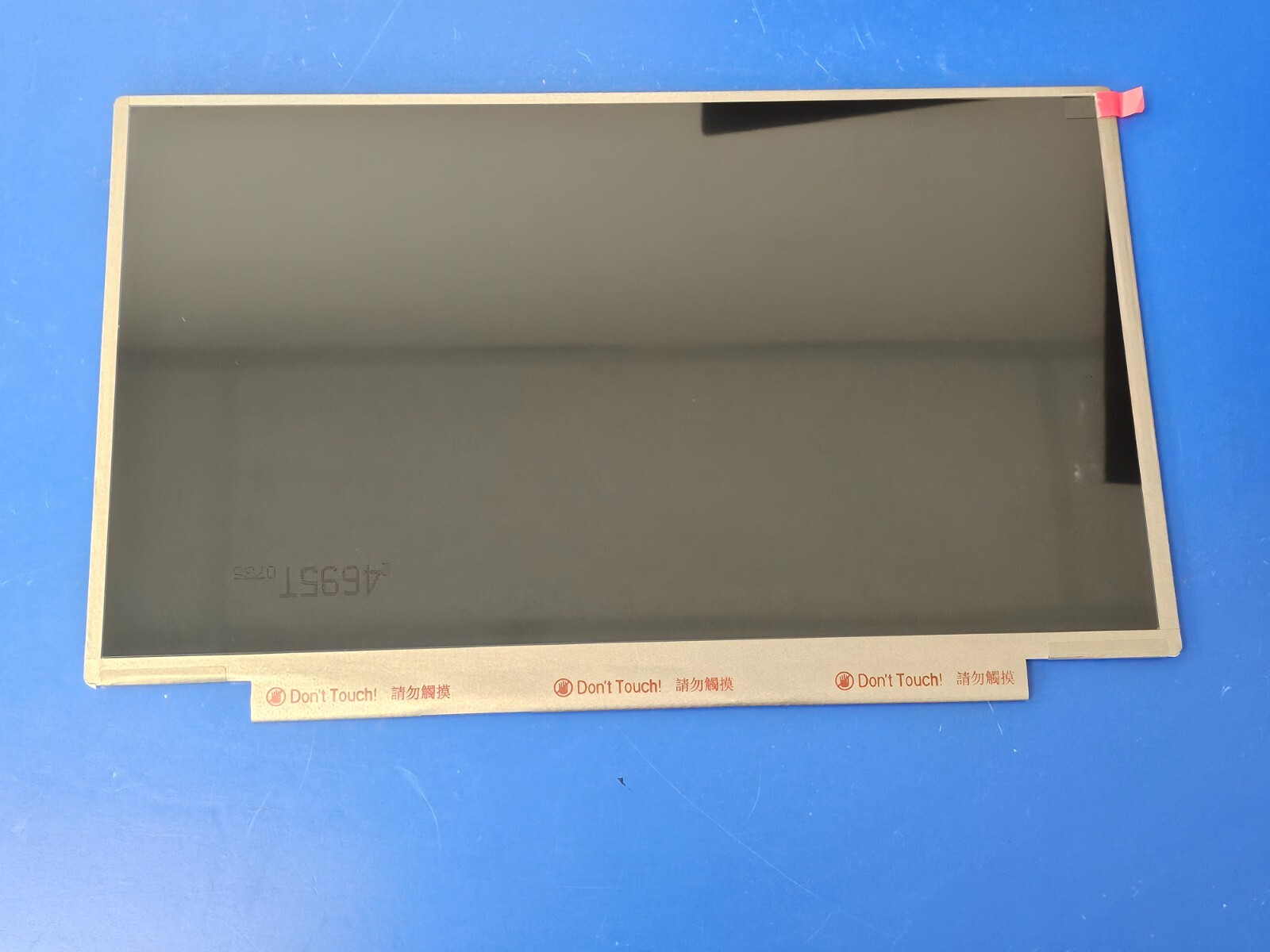

LG LP125WH2 SLT3 REPLACEMENT LAPTOP LCD SCREEN 12.5"IN 40 PIN RIGHT-SIDE

ABOUT THIS ITEM

KEY FUNCTION WORKING

UI:TE000098

**NEW**

INCLUDES:REPLACEMENT LAPTOP SCREEN

FEATURED DESCRIPTION:

LG Display LP125WH2-SLT3 Application DetailsBasic Info :Panel BrandPanel ModelLP125WH2-SLT3Diagonal Size12.5"Application

Panel Typea-Si TFT-LCD , LCMModel AliasLP125WH2 (SL)(T3), LGD039BReliability :Operating Temp.0 ~ 50 °CStorage Temp.-20 ~ 60 °CRoHS StateVibration Rating1.5G (14.7 m/s²)Specific Features :

Remarks :Fujistu P/N: CP592448-01
LG Display LP125WH2-SLT3 Mechanical DetailsPixel Features :Pixel Format1366(RGB)×768 [WXGA]Dot Pitch0.067×0.201 mm (H×V)ConfigurationRGB Vertical StripePixel Pitch0.201×0.201 mm (H×V) [125PPI]Mechanical Size :Display Area275.59×154.94 mm (H×V)Bezel Area280.1×159.5 mm (H×V)Outline Dim.290.5×180.9 mm (H×V)Outline Depth2.85/3.7 (Typ./Max.) mmOutline Features :Form FactorFlat RectangleOrientationLandscape typeAspect Ratio16:9 (H:V)Shape StyleSlim (PCBA Flat, T≤3.2mm)Holes & Brackets :WithoutOther Features :Weight205g (Max.)SurfaceAntiglare
LG Display LP125WH2-SLT3 Optical DetailsBasic Information :Brightness300 cd/m² (Typ.)Contrast Ratio500:1 (Min.) (Transmissive) Viewing Angle80/80/80/80 (Min.)(CR≥10)Optical ModeAH-IPS, Normally Black, TransmissiveViewing DirectionSymmetryResponse Time35 (Typ.)(Tr+Td) (ms)Color Performance :ChromaticityWx:0.313; Wy:0.329Color Numbers262K (6-bit)Color Temperature6485KWhite Uniformity1.40/1.60 (Typ./Max.)(13 points)1931 Color Gamut :NTSC Ratio49%sRGB69% coverageAdobe RGB52% coverageDCI-P351% coverageRec.202037% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
LG Display LP125WH2-SLT3 Electronics DetailsFrame Frequency :60HzReverse Scan :NoPower Consumption :4.33W (Typ.)
LG Display LP125WH2-SLT3 Backlight DetailsBack-light Features:Lamp Shape-Lamp TypeWLEDLife Time12K(Min.) (Hours)Replacement-Amount-PositionEdge light typeInterface Features :TypeIncluded in signal interfacePosition-Lamp DriverWith LED DriverDriver Electrical :Voltage Input7.0/12.0/21.0V (Min./Typ./Max.)Current Input292/336mA (Typ./Max.)Consumption3.5/4.1W (Typ./Max.)
LG Display LP125WH2-SLT3 Interface DetailsSignal Systerm :LVDS (1 ch, 6-bit)Logic Voltage-Signal Electrical :Voltage Input3.3V (Typ.)Current Input252/290mA (Typ./Max.)Consumption0.83/0.96W (Typ./Max.)Interface Features :TypeConnectorPositionConnector Detail :BrandModelPin PitchPinsAmountConfigurationLS MtronGT05Q-40S-H100.5 mm40 pins1 pcsLVDS-40P1C6B-060B

Delivery Details:

WE DO NOT SHIP INTERNATIONALLY!UNITED STATES SHIPMENT ONLY.We try our best to ship order after payment is received.Order placed on weekends or holiday will be shipped on Monday or next business day.We will ONLY ship the item to your Confirmed Address, so please confirm that your delivery address is correct before you place an order. Address cannot be changed after an order has been sent. We ship out next day if item is purchase and paid for before 1:45 pm Central. Otherwise, will be shipped out next day. We are closed on the weekends and Holidays, so no shipping nor customer service are available. For all LOCAL PICKUP, guest must schedule an appointmentprior to pick up. Order value of $300.00 or more will require a signature to receive package to prevent loss of package. Please arrange someone to be available.
