WiFi 7 Card Network M.2 NGFF 8800Mbps BE200NGW WiFi Bluetooth5.4 Card Tri-Band:
$28.99

WAVLINK WiFi 7 Wireless Card, 8774Mbps Tri-Band BE200 M.2 NGFF Network Module with Bluetooth 5.4, MU-MIMO, WPA3, Support Windows 10/11(64-bit) Laptop, Not Support AMD

Features:

⭐Pioneering Wi-Fi 7 Technology: WiFi 7 technology represents the latest evolution in wireless networking, offering ultra-fast speeds, reduced latency, and enhanced efficiency. With advanced features like increased 320MHz bandwidth, improved security, 4096-QAM and support for more devices, WiFi 7 sets a new standard for high-performance connectivity.

⭐Unmatched Tri-Band Speed: The Intel BE200 chipset takes your WiFi to the next level by extending it into the 6GHz band. This tri-band capability enables maximum speeds of up to 574Mbps on 2.4GHz, 2400Mbps on 5GHz, and another 5800Mbps on 6GHz. Meet the use of high bit rate 4K/8K video, VR/AR applications, remote working, video conferencing and cloud computing scenarios.

⭐Bluetooth 5.4: Building upon Bluetooth 5.3, Bluetooth 5.4 introduces features like LE Enhanced Connection, Host Set Controller Key Length, and LE Channel Hierarchy functions, resulting in lower latency, improved anti-interference capabilities, and reduced energy consumption.

⭐Installation Requirements: Compatible with motherboards featuring Intel CPUs and M.2 network slots that support NGFF M.2 A/E key(Not applicable to Key M and B which used for SSDs). Ideal for expanding or upgrading wireless capabilities of laptops, PCs, industrial controllers, NAS devices, etc., that are equipped with M.2 interface slots.

⭐Compatible Syetems: Compatible with Windows 10/11(64-bit). The driver must be installed on the operating PC (search for "685BE3M" on the official WAVLINK website to download and install the driver). Not support for all devices whose motherboard has AMD chips.

WAVLINK Wi-Fi 7 BE8800 PCIe Tri-band WiFi Card--Innovative Wireless Connectivity!
WAVLINK's triple-band M.2 module, the BE8800 wireless adapter for laptops, features an NGFF/M.2 connector and MLO technology for minimized signal interference and transmission delays, ensuring a faster, more reliable wireless networking experience. This module supports MU-MIMO technology, enhancing wireless signals in collaboration with an MU-MIMO compatible router. Compliant with the 802.11be specification, it operates across 2.4GHz, 5GHz, and 6GHz bands, achieving a maximum data transfer rate of 8800Mbps.

Latest Bluetooth 5.4
Solve the problem of a poor signal by achieving 2x quicker speeds and 4x greater coverage than BT4.0. Coordinate your game controllers, headphones, and keyboards with the latest Bluetooth standard.

Compatible OS
Support Windows 10/11 64-bit
*Please note that to utilize 6GHz band, the user must be on Windows 11 version.

WPA3 Security
The latest WiFi security protocol, WPA3, brings new capabilities to improve cyber security. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home network.

Powerful BE200 Chip
The BE200 incorporates the latest IEEE Wi-Fi specification of 802.11BE, introducing the new band extension for Wi-Fi: UHB (Ultra High Band).

Driver Required
Please visit the WAVLINK official website to download and install the driver, enabling you to experience high-speed internet connectivity.

Steps to Install the Wi-Fi Module
1. Unplug the power, open the back cover of the laptop.
2. Find the wireless network card slot and remove the old network card.
3. Install the BE200 module, tighten the screw, fix the antenna and cover the back case.

Specification

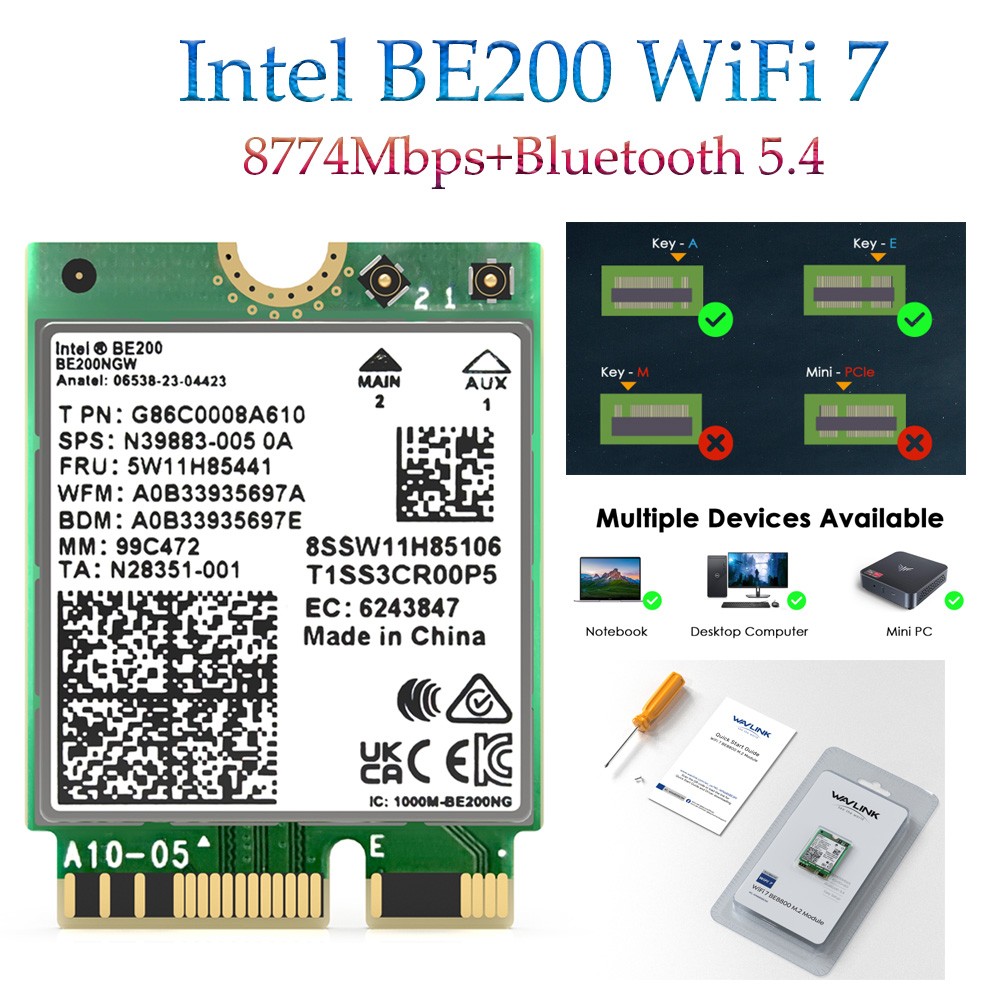

Product Model: WN685BE3M-A(chipset: Intel BE200)
Transmission Rate: 2.4GHz: 574Mbps, 5GHz: 2400Mbps, 6GHz: 5800Mbps
Protocol Standard: support IEEE 802.11a/b/g/n/ac/ax/be
Frequency Band: 2.4GHz, 5GHz, 6GHz
Technical Support: MU-MIMO,OFDMA, BSS Coloring, 320MHz, 4096QAM, Target Wake Time(TWT), Multi Link Operation(MLO), Multi-RU, Enhanced Multi-Link Single Radio(eMLSR)
Support System: Win 11/10 (64 bit)
Bluetooth Version: Bluetooth 5.4
Interface: Compatible with NGFF M.2 A/E Key Slot
Wireless Security: WPA3/WPA2 encryption

Package Contents
-1x WiFi 7 BE8800 M.2 Module
-1x Screwdriver
-1x Screw
-1x User Manual

Warm Tips
1. This Wi-Fi card will not boost the speed of the original router, which only helps your computer receive a better signal and speed of the router(Increase the maximum wireless bandwidth limit).
2. It has nothing to do with the quality of this adapter when you can't get the maximum speed. The network environment, router, barriers, laptop and PC 's internal memory…the interference of many factors can affect the speed.
3. Please note that to utilize 6GHz band, the PC must be on Windows 11 version.
