Notebook DDR5 RAM Tester LED Diagnostic Tool for Laptop DDR5 SO-DIMM Memory For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Notebook DDR5 RAM Tester LED Diagnostic Tool for Laptop DDR5 SO-DIMM Memory:
$30.50

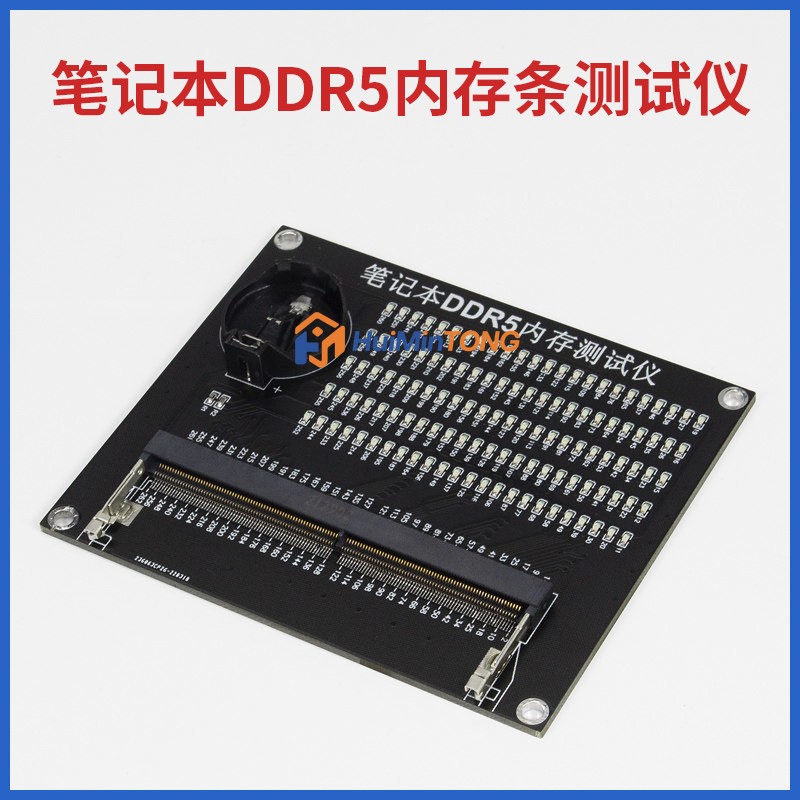

Notebook DDR5 Memory Tester
Introduction to the Memory Tester:
Targeting common hardware faults in memory modules, our company has developed this DDR5 memory repair tester to easily resolve various hardware issues with memory. It uses LED indicators to replace traditional manual measurement methods with a multimeter. The tester features 120 indicator LEDs, each corresponding to a data line of the memory module, allowing you to quickly locate faults based on the brightness of the LEDs. When used in conjunction with video memory test software, [redacted]
Instructions for Use:
1. Insert the supplied battery (CR2032, 3.6V) into the battery holder on the test card, then insert the memory module to be repaired into the tester's slot.
- If all indicator LEDs light up with uniform brightness, the memory module has no hardware faults.
- If any LED flickers, this indicates poor contact on the memory module's gold fingers.
- If any LED does not light up, this indicates an open circuit fault. Check if the gold fingers are dirty, if any shunt resistors are damaged, or if there is an open circuit in the trace. Locate the fault point with a multimeter by referencing the pin number corresponding to the LED.
- If one or more LEDs are unusually bright, this indicates a short circuit fault.
2. If the memory module passes the hardware test, you should then consider video memory faults. Use the method of one-by-one replacement or the corresponding test software to identify the faulty video memory chip.、
