Commodore VIC-20 Diagnostic Cartridge & Test Harness Set - USA seller:
$39.99

CommodoreVIC-20 Diagnostic Cartridge complete withTest Harness Set.

NEW from AnyRetro!Everything you need to quickly and completely test your beloved Commodore VIC-20.

In addition to the Diagnostic Test Cartridge that completely tests the inner workings of the computer, this set also includes all the necessary dongles to test the external ports:

Keyboard
Serial
Joystick controller
User Port
Cassette Port

Multiple diagnostic tests per component include:

ZERO PAGE
STACK
INTERNAL RAM
EXTERNAL RAM(If present)
SCREEN RAM
CHARROM
BASIC ROM
KERNAL ROM(S), INCL PAL/NTSC AND JiffyDOS
VIC CHIP SPECIFIC TESTS
COLOR RAM
CASSETTE PORT
USER PORT
KEYBOARD MATRIX
CONTROL PORT
SERIAL IEC FLOPPY PORT
VIA1
VIA2
IRQ/NMI
SOUND

The advanced memory testing algorithms go deep to find RAM faults:

March C- — w0; r0,w1 up; r1,w0 up; r0,w1 down; r1,w0 down; r0. Catches stuck bits, transition faults, and address-decoder faults.
Solid patterns — $00, $FF, $55, $AA, each written then read back.
Address uniqueness — low byte of the address stored in each cell, then the high byte. Catches aliased or shorted address lines.
Walking ones — $01, $02, … $80 written and read at every address. Catches stuck bits and bit coupling.

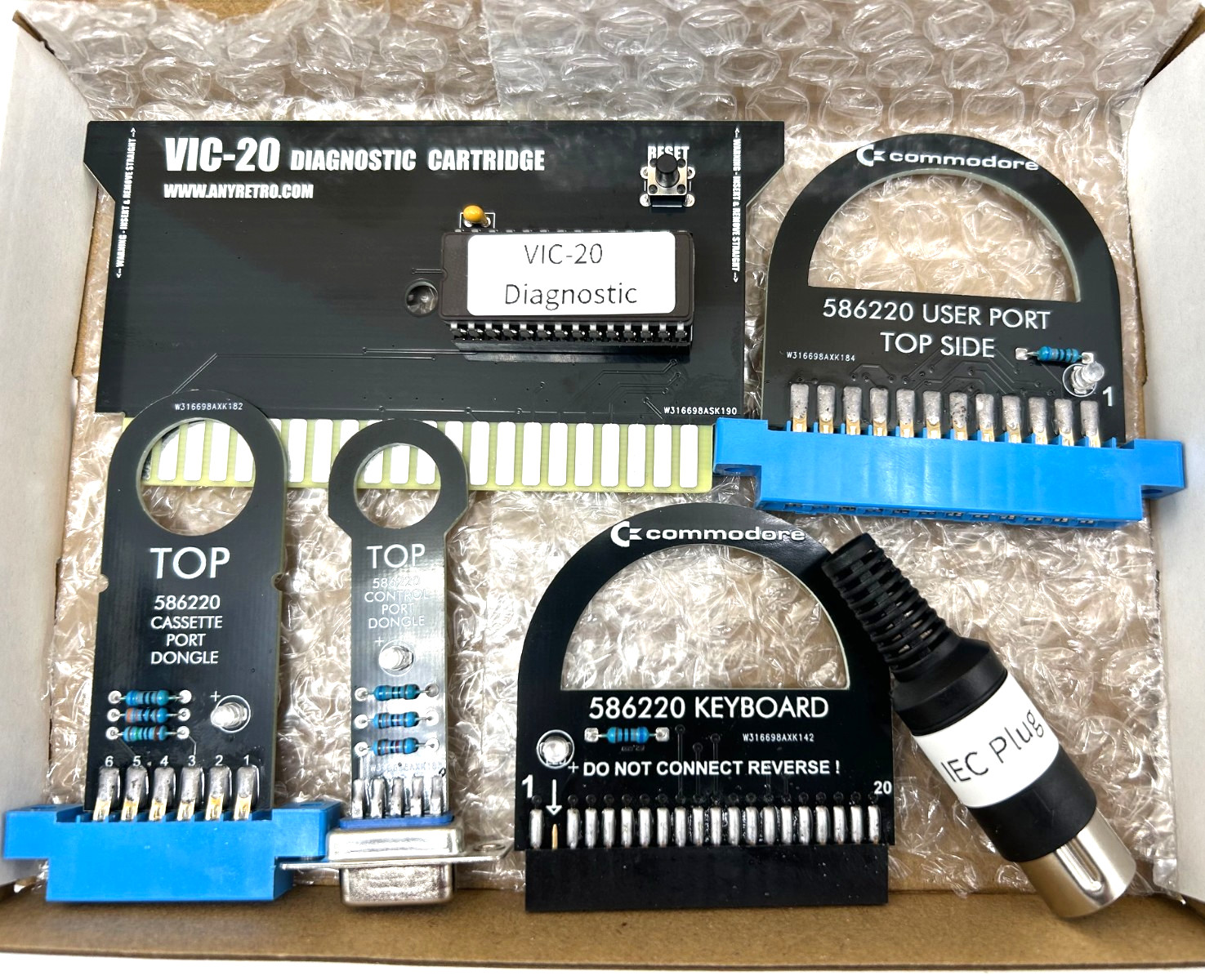

What's in the box

VIC-20 Diagnostic Cartridge: Custom circuit board with a reset button on top so you can restart the tests without switching off.
Cassette port loopback dongle
User port loopback dongle
Keyboard loopback dongle(fits the keyboard connector on the motherboard)
Control port loopback dongle
Serial port loopback dongle

Compatibility

Works with PAL and NTSC VIC-20s and detects which one you have.
Works with original KERNALs and JiffyDOS 6.01 (PAL and NTSC).
Works on a stock, unexpanded machine. Tests 3K and 8K expansion RAM if you have it fitted.
No disk drive, tape deck or software needed. Everything runs from the cartridge.

How to use it

Switch the VIC-20 off.
Plug the cartridge into the expansion port, and fit the loopback plugs to the ports you want to test.
Switch on. The tests start straight away.
Watch the screen. After each full pass it pauses for a couple of seconds and starts again. Leave it running as long as you like to soak-test the machine.
Press the reset button on the cartridge to start over.

Made in the USA. Fully compatible with all Commodore VIC-20 models, including PAL & NTSC versions.

Elevate your gaming and computing experience today!

Why order from AnyRetro?

We pride ourselves on low prices and lightning-fast free shipping, with orders processed and shipped same day.
Please don’t hesitate to contact us with any questions or concerns, your satisfaction is our top priority!
We are proud of the products we create and supply, we want you to enjoy them just as equally and back that up with a 30-day no hassle money-back refund policy.
See the glowing reviews from our many satisfied customers.

Please check out our other amazing products!
