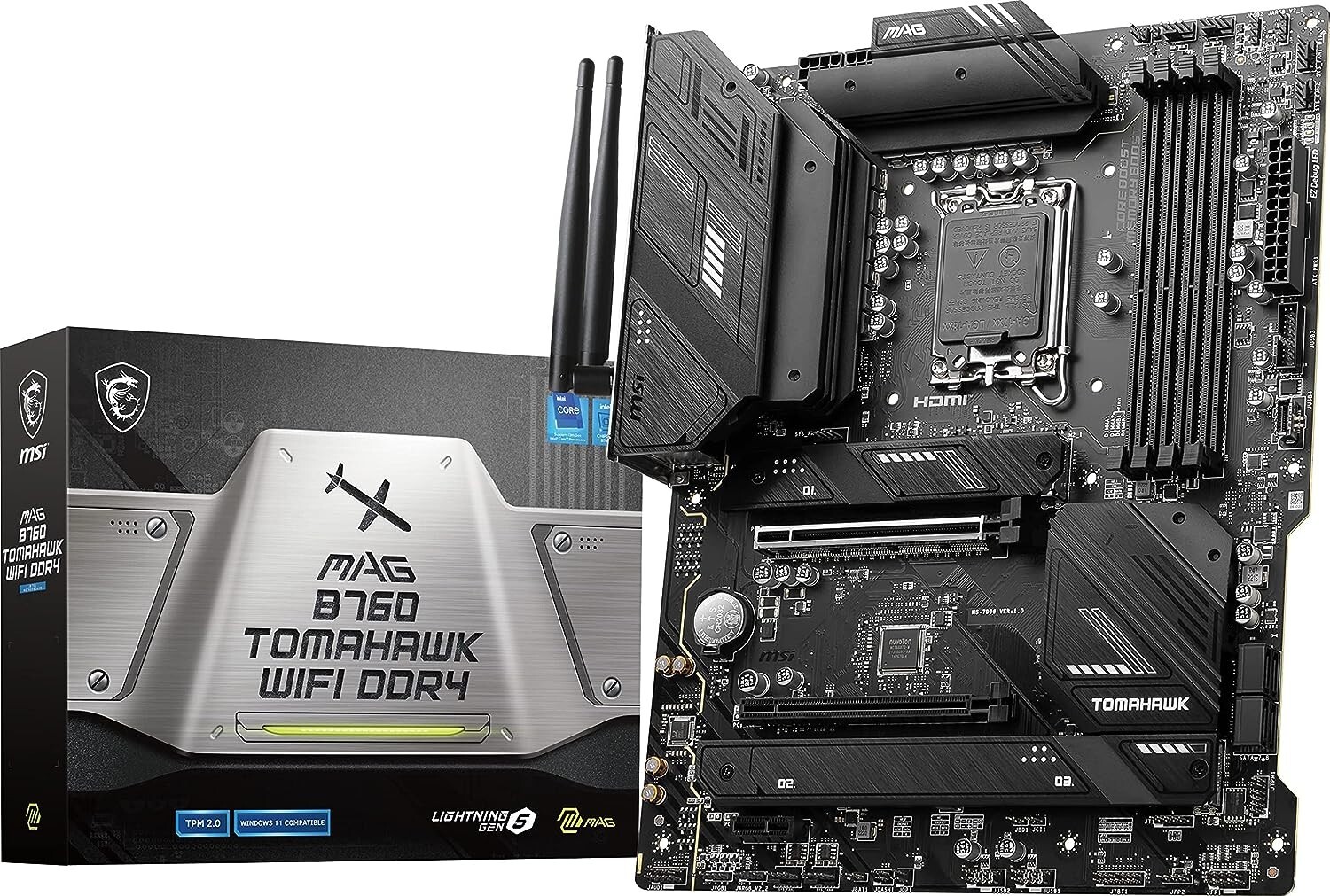

(Factory Refurbished) MSI MAG B760 TOMAHAWK WIFI DDR4 INTEL LGA 1700 Motherboard For Sale

(Factory Refurbished) MSI MAG B760 TOMAHAWK WIFI DDR4 INTEL LGA 1700 Motherboard
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.


Buy Now

(Factory Refurbished) MSI MAG B760 TOMAHAWK WIFI DDR4 INTEL LGA 1700 Motherboard:
$149.99

MSI factory refurbished unit, 120 days MSI direct warranty, comes with SATA cable, I/O shield, and Wi-Fi antenna only.
ModelBrandMSIModelMAG B760 TOMAHAWK WIFI DDR4Supported CPUCPU Socket TypeLGA 1700CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium GoldChipsetsChipsetIntel B760MemoryNumber of Memory Slots4x288pin (DDR4)Memory StandardDDR4 3200Maximum Memory Supported128GBChannel SupportedDual ChannelMemory FeatureSupports 1R 2133/2666/3200 MHz (by JEDEC & POR)
Max overclocking frequency:
- 1DPC 1R Max speed up to 5333+ MHz
- 1DPC 2R Max speed up to 4800+ MHz
- 2DPC 1R Max speed up to 4400+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
* Please refer to www.msi.com for more information on compatible memoryExpansion SlotsPCI Express 5.0 x161 x PCI Express 5.0 x16PCI Express x41 x PCI Express 3.0 x4PCI Express x11 x PCI Express 4.0 x1Storage DevicesSATA 6Gb/s4 x SATA 6Gb/sM.23 x M.2 slots (Key M)
M2_1 slot (From CPU)
- Supports up to PCIe 4.0 x4
- Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (From B760 chipset)
- Supports up to PCIe 4.0 x4
- Supports 2242/ 2260/ 2280 storage devices
M2_3* slot (From B760 chipset)
- Supports up to PCIe 4.0 x4
- Supports up to SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
* SATA7 will be unavailable when installing M2.SATA SSD in the M2_3 slot.SATA RAID0/1/5/10Onboard AudioAudio ChipsetRealtek ALC897Audio Channels7.1-Channel High Definition AudioOnboard LANLAN ChipsetRealtek RTL8125BG-CG 2.5Gbps LAN controllerMax LAN Speed2.5GbpsWireless LANIntel Wi-Fi 6EBluetoothBluetooth 5.3Rear Panel PortsBack I/O Ports4 x USB 2.0 Type-A ports (From Hub GL850G)
1 x DisplayPort port
1 x HDMI port
1 x 2.5Gbps LAN (RJ45) jack
4 x USB 3.2 Gen 2 10Gbps Type-A ports (From GL3590 Hub)
1 x USB 3.2 Gen 2x2 20Gbps Type-C port (From B760 chipset)
2 x Wi-Fi Antenna connectors
5 x Audio jacks
1 x Optical S/PDIF Out connectorInternal I/O ConnectorsOnboard USB1 x USB 3.2 Gen 2 10Gbps Type-C port (From B760 chipset)
1 x USB 3.2 Gen 1 5Gbps connector (From B760 chipset)
- Support additional 2 USB 3.2 Gen 1 5Gbps ports
2 x USB 2.0 Type-A connectors (From B760 chipset)
- Supports additional 4 USB 2.0 portsOther Connectors1 x 4-pin CPU fan connector
1 x 4-pin water-pump fan connector
5 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
1 x Tuning Controller connector
1 x TBT connector (Supports RTD3)Physical SpecForm FactorATXDimensions (W x L)12.0" x 9.6"Power Pin2 x 4-pin RGB LED connectors
2 x 3-pin ARGB Gen2 LED connectors
4 x EZ Debug LEDWindows CompatibilityWindows 11SupportedFeaturesFeaturesMSI Center
- Gaming Mode
- Smart Priority
- Game Highlights
- Mystic Light
- Ambient Devices
- Frozr AI Cooling
- User Scenario
- True Color
- Live Update
- Hardware Monitoring
- Super Charger
- Devices Speed Up
- Smart Image Finder
- MSI Companion
- System DiagnosisThermal Features
- Extended Heatsink Design
- M.2 Shield Frozr
- K7 MOSFET thermal pad / Extra choke pad- Fan headersPerforrmance
- Core Boost
- VRM Power Design
- Dual CPU Power
- Memory Boost
- Lightning Gen 4 PCI-E / M.2 Slot
- Front USB Type-C
- 2oz Copper thickened PCBDIY Friendly
- PCI-E Steel Armor
- Pre-installed I/O Shield
- EZ M.2 Clips
- EZ DEBUG LED
- EZ LED ControlAudio
- Audio BoostRGB Support
- Mystic Light Extension (RGB)
- Mystic Light Extension (A-RAINBOW V2)
- Ambient Devices SupportBIOS
- Click BIOS 5


Buy Now
